A selection of our work
A selection of parts machined using a range of different strategies. Lots of compound curve surfaces and draft angle faces of which 5 axis work really excels at processing. Very tight immovable deadline, tight tolerance designs. All delivered satisfactorily by us.
A nice example displaying various machining strategies.

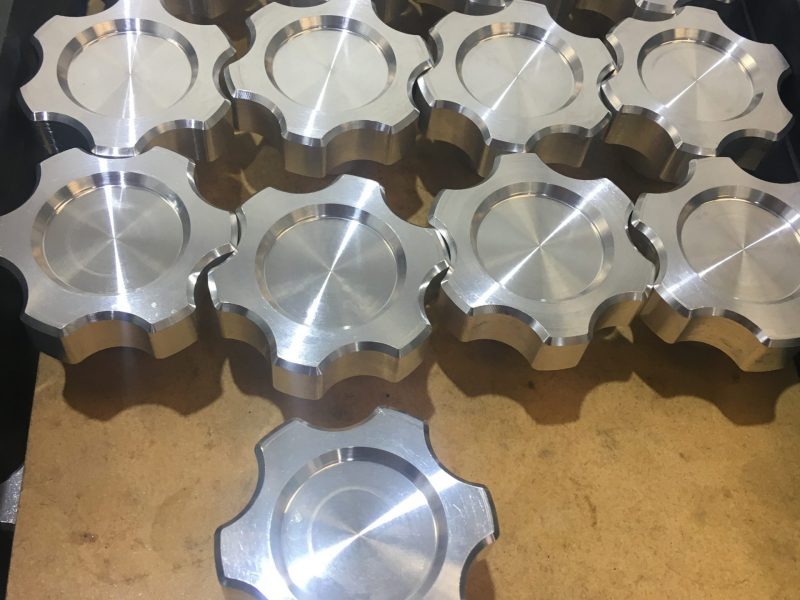

Mill-Turn. Or is it Turn-Mill? Whatever! Our Mazak made a good job of these. We used a custom carbide cutter to apply the chamfer (on the rearside too) at the same time as the peripheral cuts. Faster process time = cheaper part for the customer.

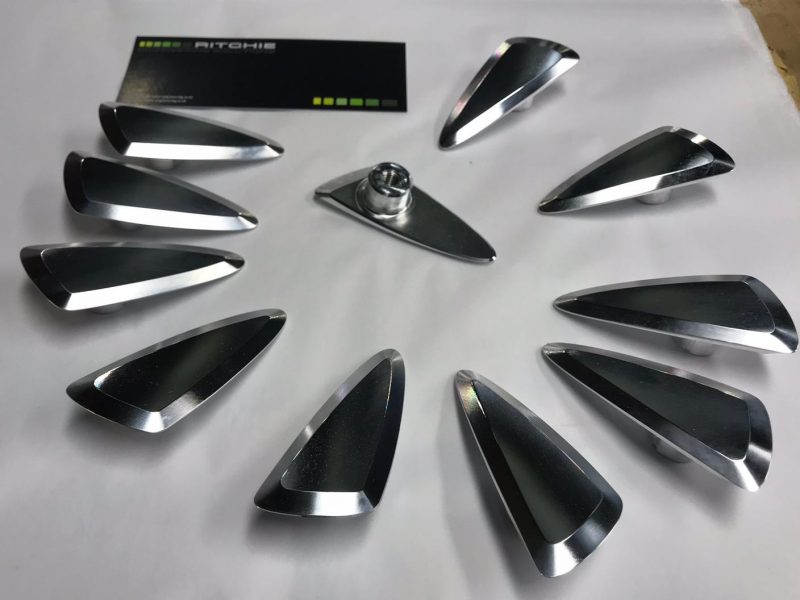

An interesting part that required a mixture of 5 axis positional and 5 axis simultaneous strategies. The required cosmetic finish varied, hence the mixture of coarse and smooth finishes. A batch of these were produced on our Matsuura MAM 72 35V, which ran for 12 days non-stop (24-7). The last one to come off was … Read More

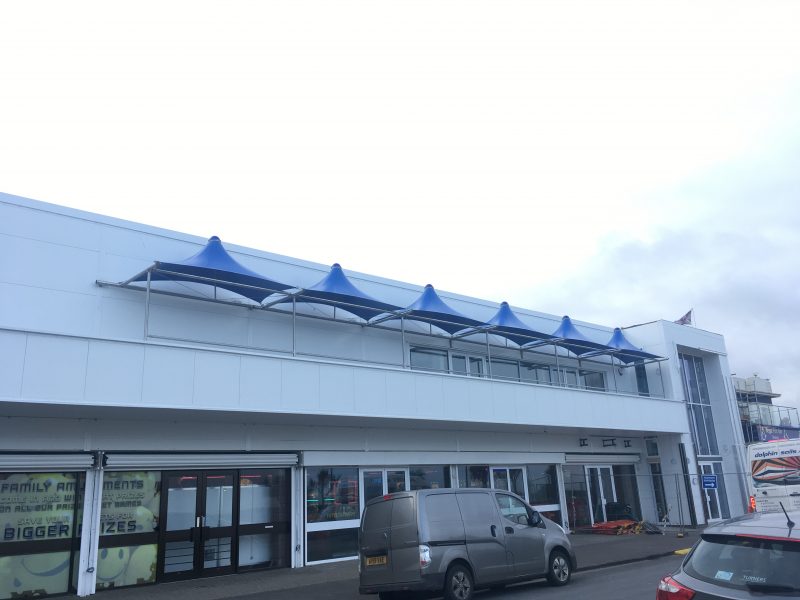

Working with a local company, Dolphin Tensile Awnings, we designed, manufactured and erected a stainless steel framework to facilitate a series of tensile fabric awnings providing coverage to a balcony at this renovated seaside bar & club. Here follows an outline of the process involved.

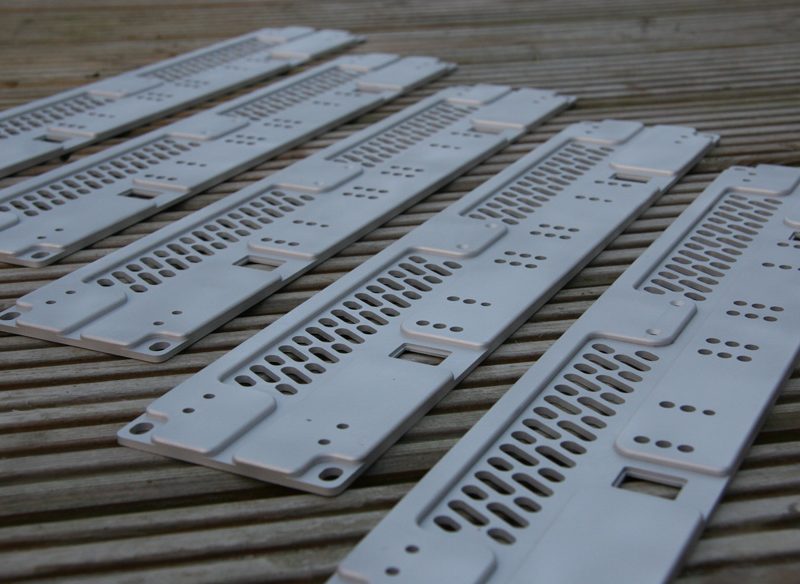

Fascia Panels These fascia panels for a Professional Audio OEM required us to design some custom work holding to ensure the milling operations proved reliable and the component quality consistently high. Quality is particularly important for these items; the client is recognised to be one of the market leaders in the professional audio high-end sector … Read More
A simple part, but with a high quality surface finish requirement as Class A surface for an automotive OEM client. Our Matsuura running at 20,000 rpm made a nice job of this.

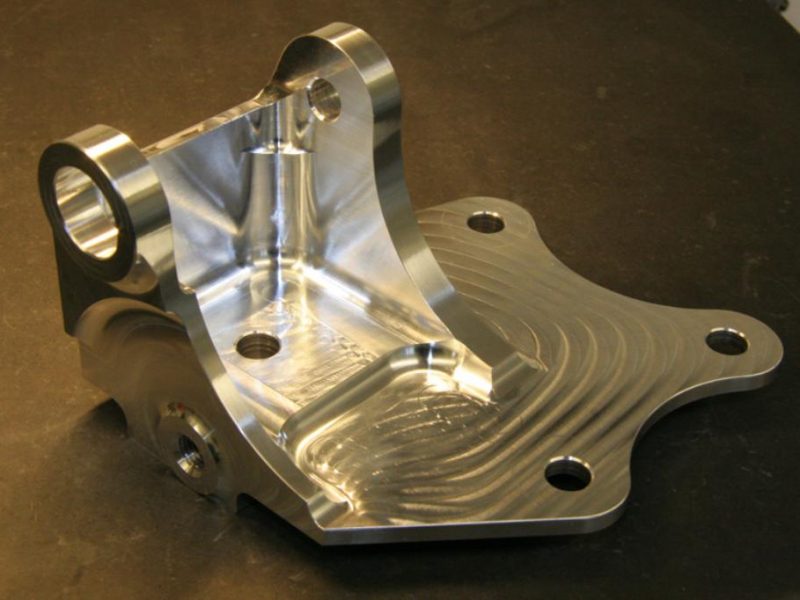

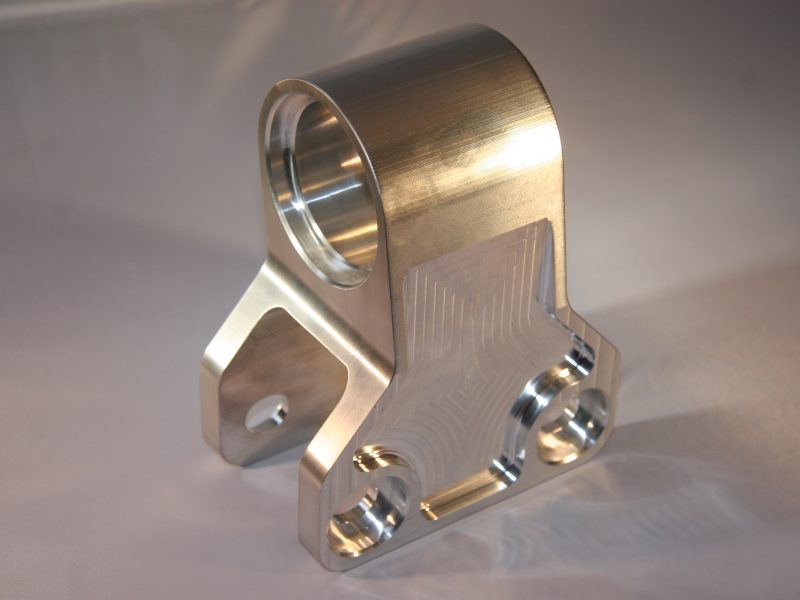

Billet machined alternator bracket for a Motorsport Rally client. Ritchie Engineering designed, analysed (stress & vibration) and manufactured.
A nice example of machining recently undertook for an automotive client, comprising a mixture of classic 2.5 D machining, surface scanning and pocketing.
Automotive Components An example of some machined parts for an automotive OEM client. Not overly complex, but a mixture of tight tolerance control and surface finish demands required careful attention to detail and work holding. We were happy with the way these came out, and more importantly – so was the client.

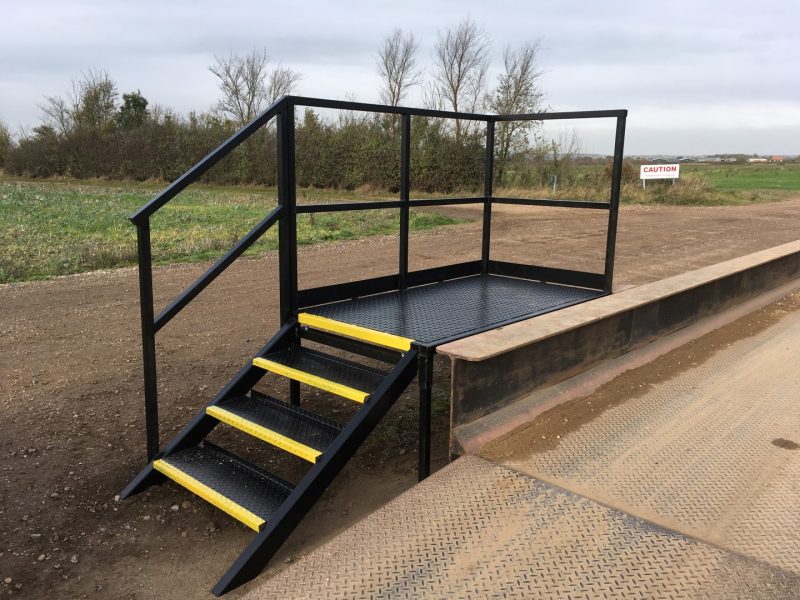

We were approached by a local aggregates quarry, they wanted a small access platform to aid drivers at the truck weighbridge. A site visit and survey lead to design and manufacture of a platform which we installed. For any metal fabrication requirements you have, please get in touch.

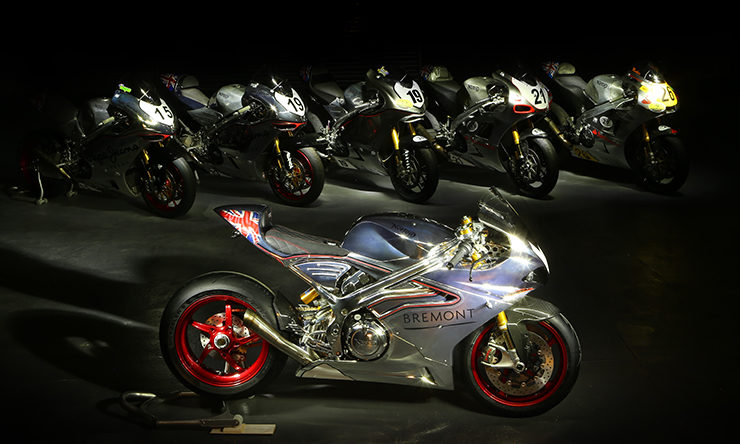

When the British motorcycle manufacturer decided to champion Great British engineering with its new V4 race born road bike Ritchie Engineering were just the specialists they needed to help supply a number of complex machined components. Working with Norton from the earliest concept designs up until market release, we helped them overcome a range of … Read More
Another exciting project working alongside Tree Tents International Ltd. and this time world renowned explorer and survivalist Bear Grylls. Tree Tents doesn’t fall short when it comes to amazing outdoor structures but when we got the phone call asking for help with a project to make Bear a custom tree-house den for his kids we were happy … Read More

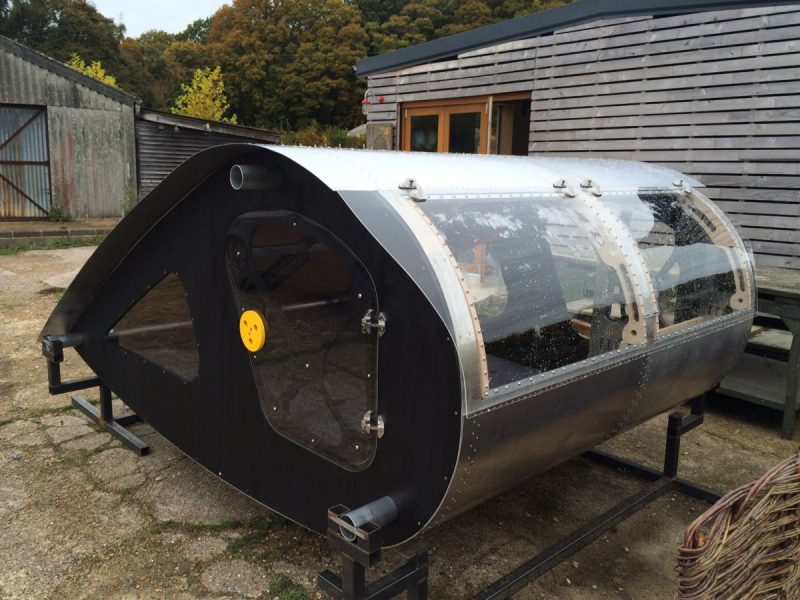

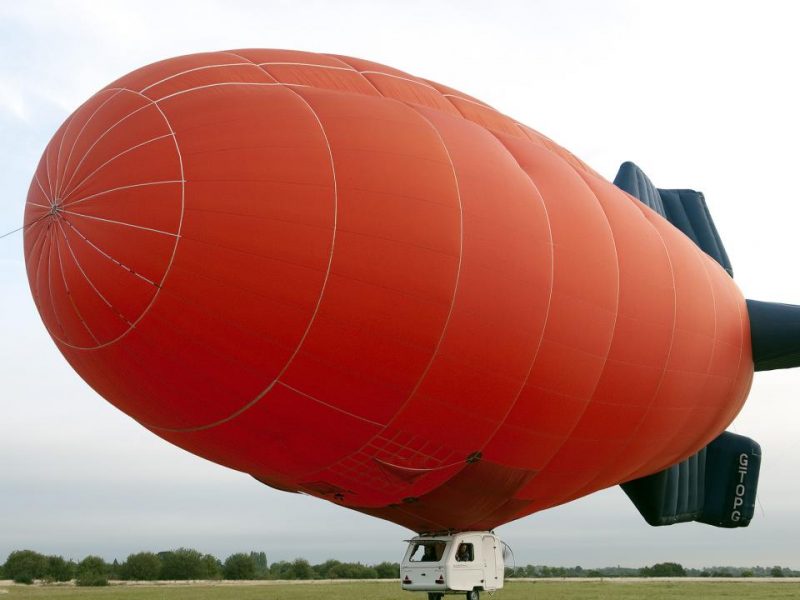

An interesting and unusual project. Working with Lindstrand Hot Air Balloons Ltd, we were commissioned by the BBC Top Gear production team to build a caravan-airship.. as you do. This was a very technically challenging project. When in ground mode the caravan needed to look like a regular caravan. When in flight mode it had … Read More

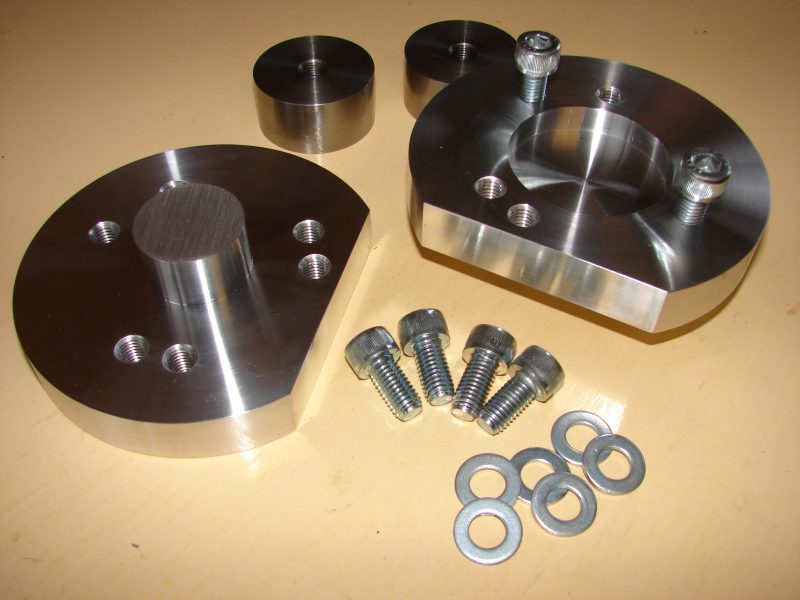

We were approached to design and develop a suspension lift kit applicable to the Suzuki SX4 vehicle. This was a particular requirement for Haiti in the aftermath of the devastating earthquake of 2010, where the standard SX4 did not have the ground clearance to cope with the damaged road network. This simple & robust kit … Read More
