A selection of parts machined using a range of different strategies. Lots of compound curve surfaces and draft angle faces of which 5 axis work really excels at processing. Very tight immovable deadline, tight tolerance designs. All delivered satisfactorily by us.
A nice example displaying various machining strategies.
Mill-Turn. Or is it Turn-Mill? Whatever! Our Mazak made a good job of these. We used a custom carbide cutter to apply the chamfer (on the rearside too) at the same time as the peripheral cuts. Faster process time = cheaper part for the customer.

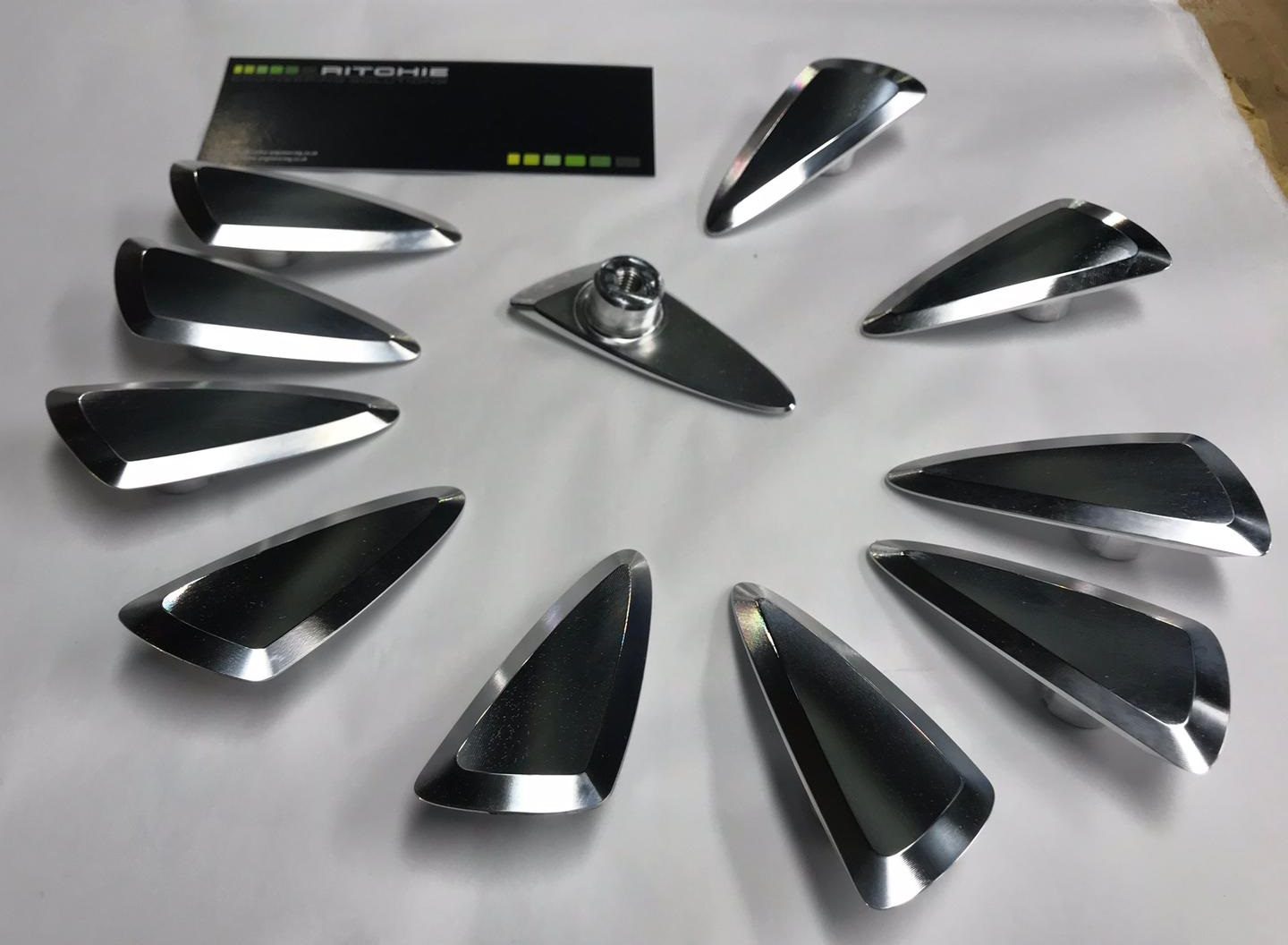

An interesting part that required a mixture of 5 axis positional and 5 axis simultaneous strategies. The required cosmetic finish varied, hence the mixture of coarse and smooth finishes. A batch of these were produced on our Matsuura MAM 72 35V, which ran for 12 days non-stop (24-7). The last one to come off was … Read More
Working with a local company, Dolphin Tensile Awnings, we designed, manufactured and erected a stainless steel framework to facilitate a series of tensile fabric awnings providing coverage to a balcony at this renovated seaside bar & club. Here follows an outline of the process involved.

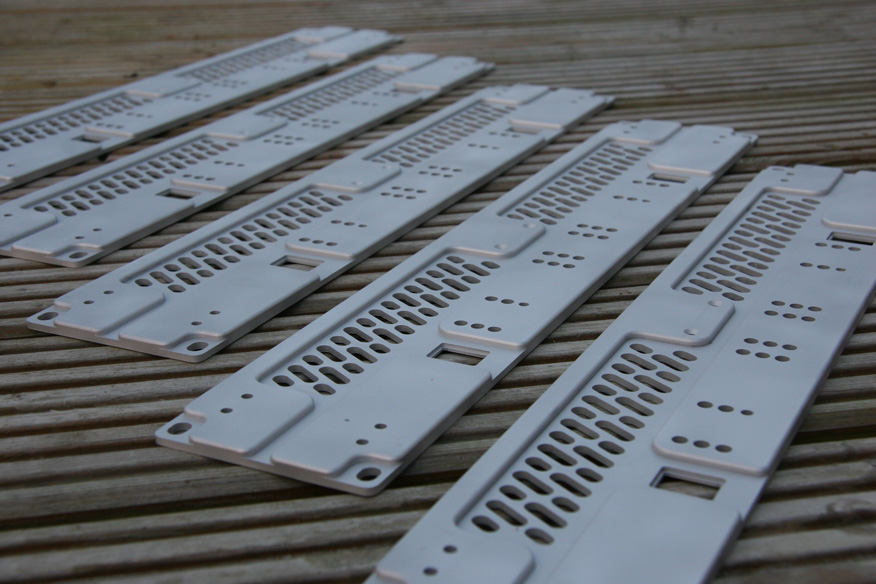

Fascia Panels These fascia panels for a Professional Audio OEM required us to design some custom work holding to ensure the milling operations proved reliable and the component quality consistently high. Quality is particularly important for these items; the client is recognised to be one of the market leaders in the professional audio high-end sector … Read More
A simple part, but with a high quality surface finish requirement as Class A surface for an automotive OEM client. Our Matsuura running at 20,000 rpm made a nice job of this.

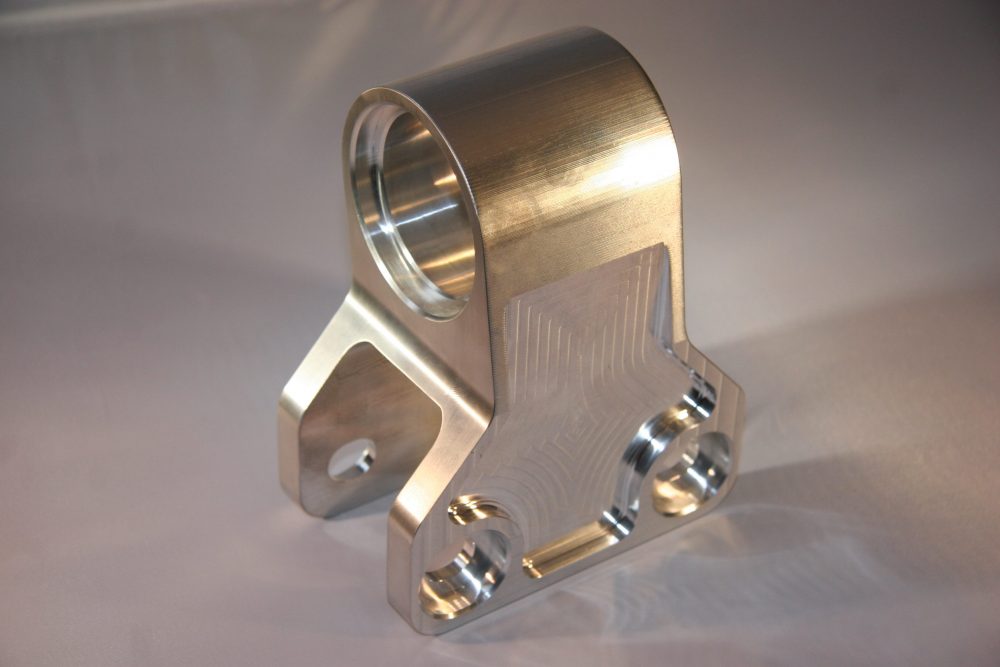

Billet machined alternator bracket for a Motorsport Rally client. Ritchie Engineering designed, analysed (stress & vibration) and manufactured.
A nice example of machining recently undertook for an automotive client, comprising a mixture of classic 2.5 D machining, surface scanning and pocketing.

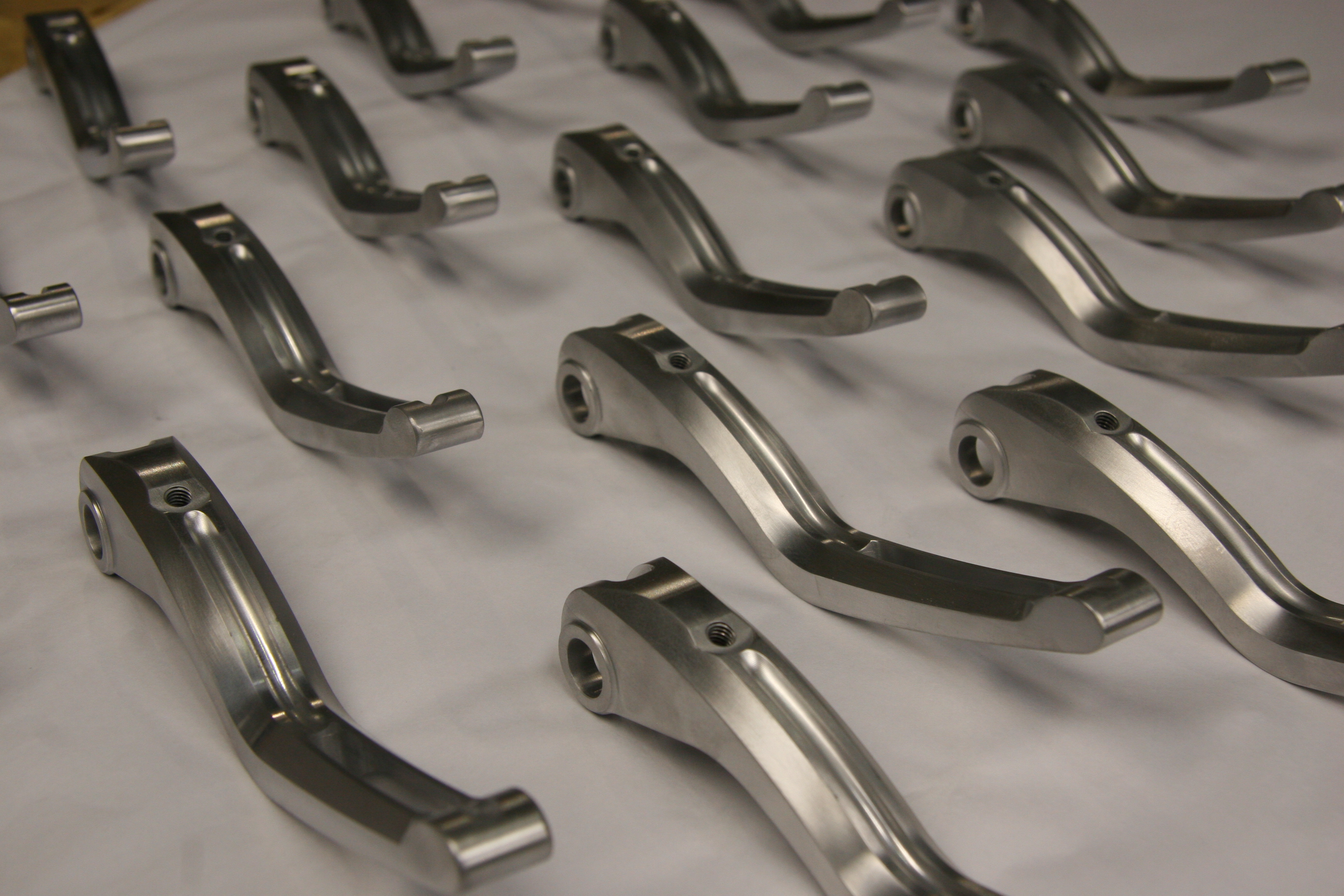

Automotive Components An example of some machined parts for an automotive OEM client. Not overly complex, but a mixture of tight tolerance control and surface finish demands required careful attention to detail and work holding. We were happy with the way these came out, and more importantly – so was the client.
